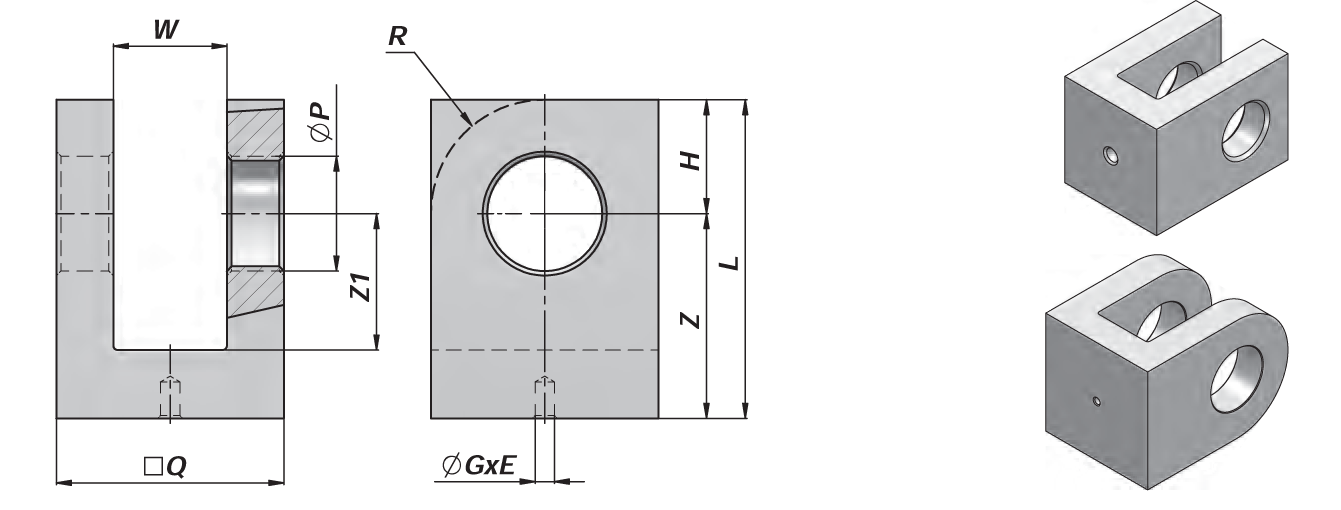

Viljuškaste Uške

∅P ⊡Q W Z Z1 H L R ∅ G x E
16.20 35 16 34 24 16 50 - ∅ 4.25 x 6
20.25 40 20 40 30 20 60 - ∅ 4.25 x 6
25.25 50 25 45 30 25 70 - ∅ 4.25 x 8
30.25 60 30 50 35 30 80 30 ∅ 4.25 x 8
35.25 70 35 55 40 35 90 35 ∅ 4.25 x 8
40.25 80 40 70 50 40 110 40 ∅ 4.25 x 10
50.50 100 50 95 60 50 145 50 ∅ 6.25 x 12
60.50 110 60 105 65 55 160 55 ∅ 6.25 x 12

MATERIAL: Čelik: S235JR (Fe360/Fe360B)
PO NARUDŽBI: Inox 316L

∅P ⊡Q W Z Z1 H L R F
16.20 35 16 39 24 16 55 - M 16 x 1,5
20.25 40 20 45 30 20 65 - M 20 x 1,5
25.25 50 25 50 30 25 75 - M 24 x 2
30.25 60 30 65 35 30 95 30 M 30 x 2
35.25 70 35 75 40 35 110 35 M 33 x 2
40.25 80 40 85 50 40 125 40 M 33 x 2
50.50 100 50 100 60 50 150 50 M 45 x 2
60.50 110 60 110 65 55 165 55 M 56 x 4

MATERIAL: Čelik: S235JR (Fe360/Fe360B)
PO NARUDŽBI: Inox 316L
